Wideband Omnidirectional Ceiling Antenna | 698-6000 MHz | 2-4.5 dBi | 50 Ω
$0.00
Engineered wideband omnidirectional coverage for 4G/5G networks.
• Up to +4.5 omnidirectional gain • 698-6000 MHz wideband operating frequency range • VSWR ≤ for stable, low-reflection performance • Low-PIM design (IM3 ≤ –150 dBc @ 2×43 dBm) • Engineered for indoor 4G/LTE, 5G, DAS, and wideband ceiling-mount coverage applications
Technical Specifications

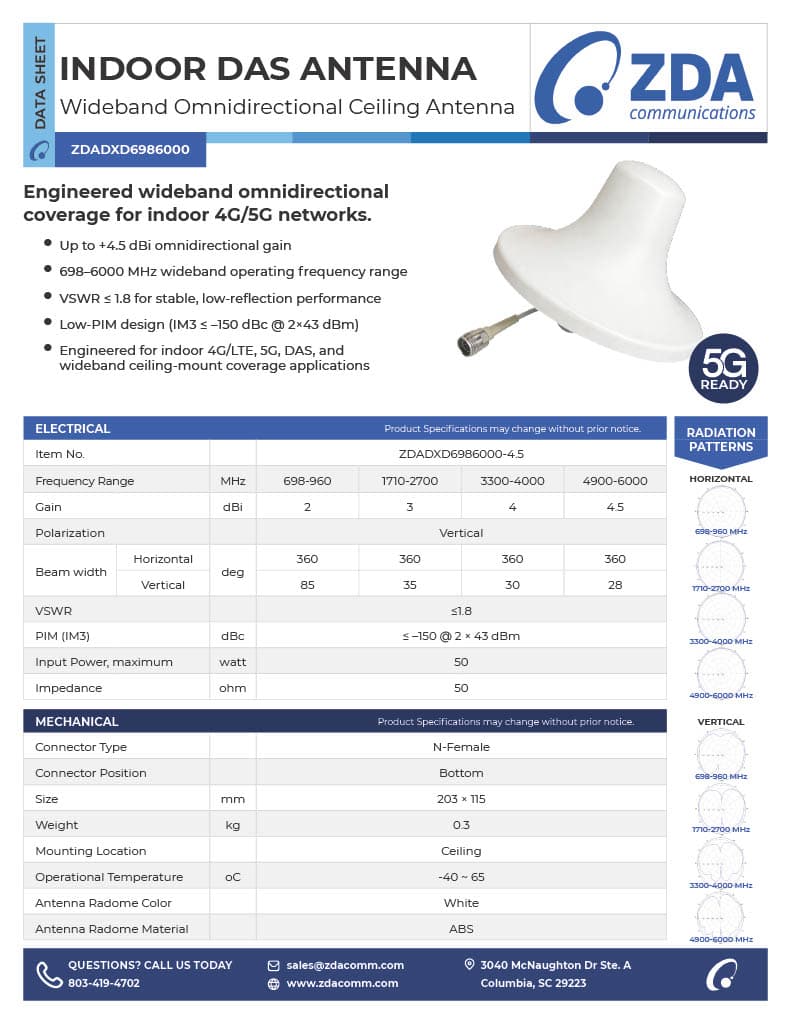

For full product specifications, download the attached data sheet.

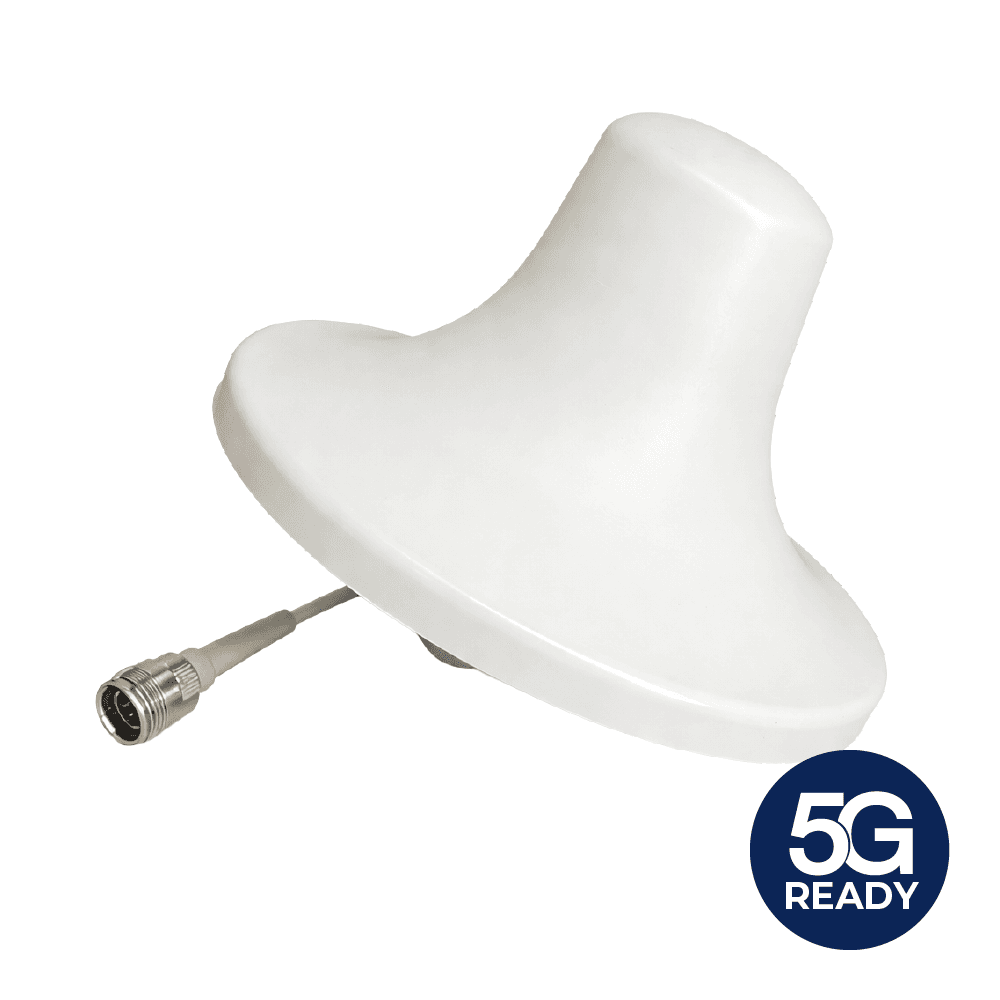

The ZDA Indoor Ceiling Antenna (ZDADXD6986000) is a wideband omnidirectional antenna engineered to deliver reliable in-building coverage across the 698–6000 MHz spectrum. Designed for indoor 4G/LTE, 5G, DAS, and wideband wireless applications, it provides up to +4.5 dBi gain with 360-degree horizontal coverage, making it well suited for distributed indoor networks that require clean, consistent signal distribution across multiple frequency bands.
Built for stable RF performance, the ZDADXD6986000 features VSWR ≤ 1.8, a low-PIM design rated to IM3 ≤ –150 dBc @ 2 × 43 dBm, 50-ohm impedance, and an N-Female connector for straightforward integration into indoor DAS and wireless infrastructure. Its compact ABS radome, ceiling-mount form factor, and wide operating temperature range make it a practical solution for commercial buildings, campuses, healthcare facilities, and other indoor environments requiring broadband wireless coverage.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +4.5 omnidirectional gain
- •698-6000 MHz wideband operating frequency range
- •VSWR ≤ for stable, low-reflection performance
- •Low-PIM design (IM3 ≤ –150 dBc @ 2×43 dBm)
- •Engineered for indoor 4G/LTE, 5G, DAS, and wideband ceiling-mount coverage applications
Applications
- •Indoor DAS Systems
- •4G/LTE Coverage
- •5G In-Building Networks
- •Wideband Ceiling-Mount Coverage
