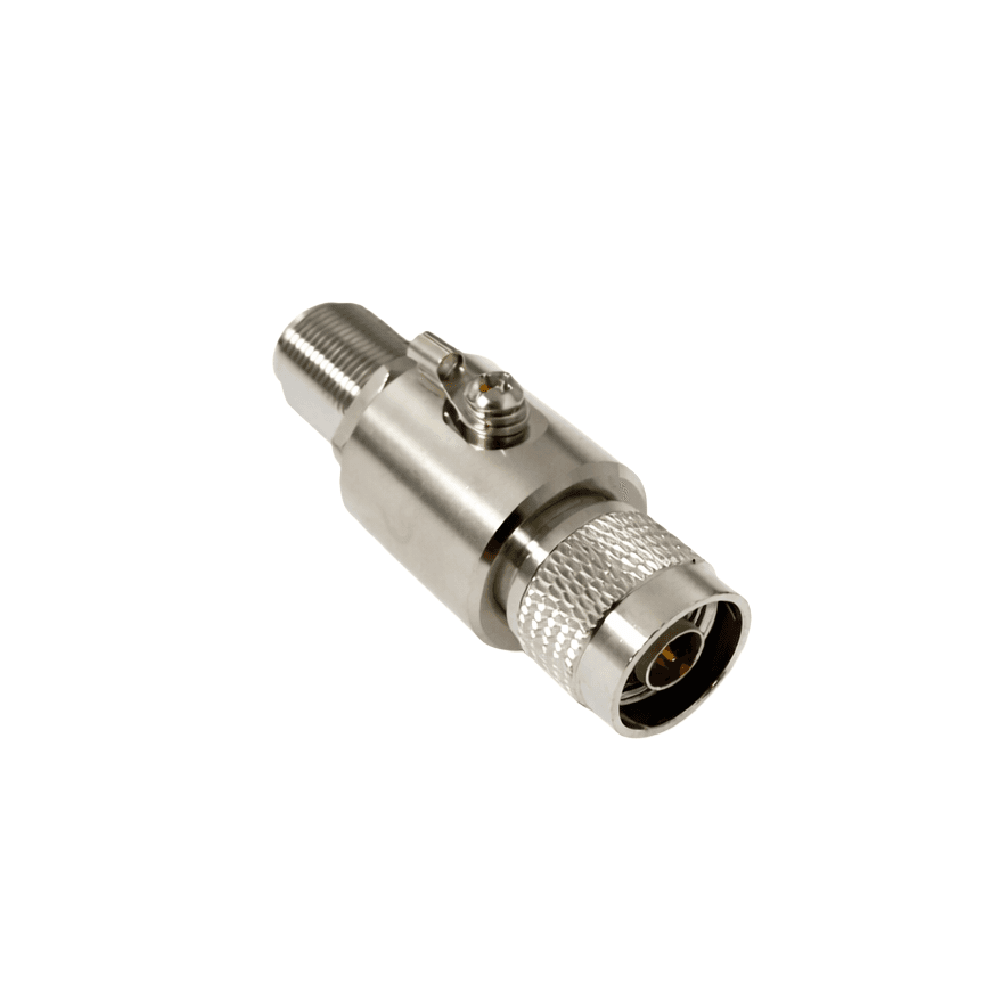

N-Male to N-Female Gas Tube Surge Arrestor | DC-6 GHz | 50 Ω
$30.00
50-ohm gas tube surge arrestor for RF interconnect, feedline, and protection.
• Gas tube surge protection to safeguard RF equipment • Wideband DC-6 GHz operating frequency range • Low ≤ 0.3 dB insertion loss • ≤ 1.25 VSWR for reliable impedance matching and consistent RF system performance • IP65 environmental protection with rugged plated brass construction
Technical Specifications

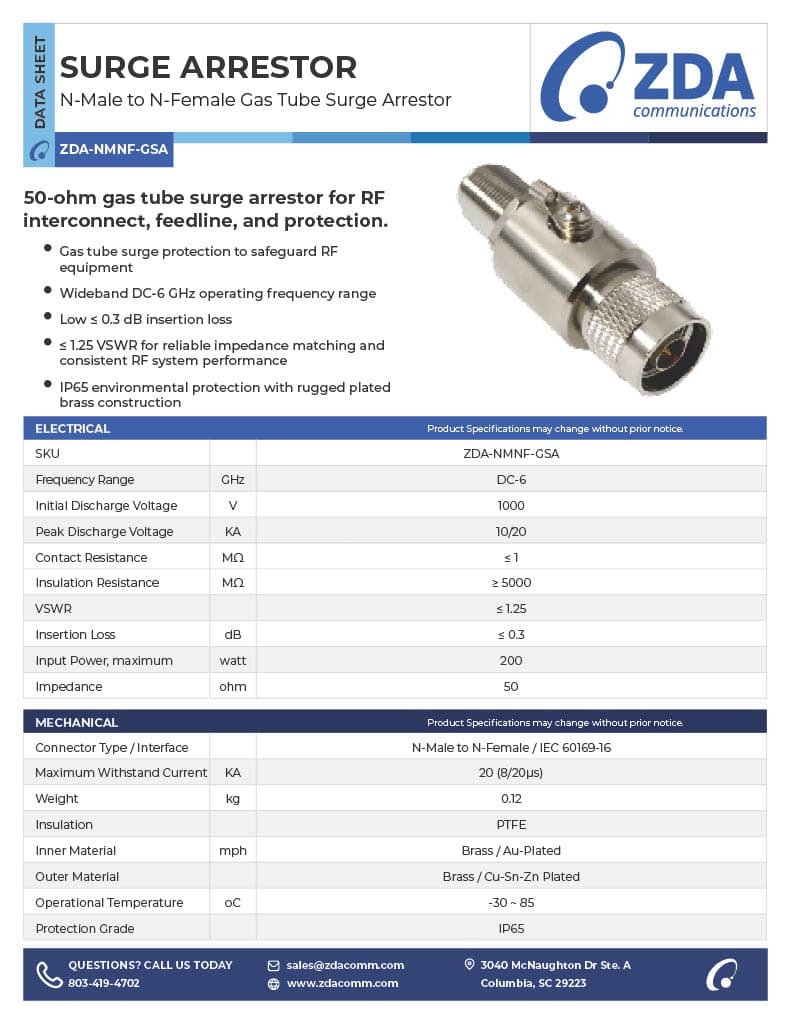

For full product specifications, download the attached data sheet.
The ZDA-NMNF-GSA is a 50-ohm gas tube surge arrestor designed to protect RF equipment, interconnects, and antenna feedlines from transient surge events while maintaining consistent electrical performance. With a wideband DC–6 GHz operating range, low insertion loss of ≤0.3 dB, and VSWR ≤1.25, it supports dependable inline protection for wireless infrastructure, DAS, and general RF distribution systems.
Built with an N-Male to N-Female interface, the ZDA-NMNF-GSA is well suited for integrators and installers who need a straightforward protection component that fits cleanly into existing 50-ohm RF paths. Its rugged plated brass construction, IP65 protection grade, and 20 kA maximum withstand current are built for indoor and outdoor deployments where equipment protection and long-term reliability are critical.
For additional information and complete splitter specifications, download the attached data sheet.
Features
- •Gas tube surge protection to safeguard RF equipment
- •Wideband DC-6 GHz operating frequency range
- •Low ≤ 0.3 dB insertion loss
- •≤ 1.25 VSWR for reliable impedance matching and consistent RF system performance
- •IP65 environmental protection with rugged plated brass construction
Applications
- •Inline surge protection for antenna feedline runs
- •DAS and in-building wireless RF equipment protection
- •Base station, repeater, and distributed RF system protection
- •General RF interconnect protection in enterprise and industrial networks
