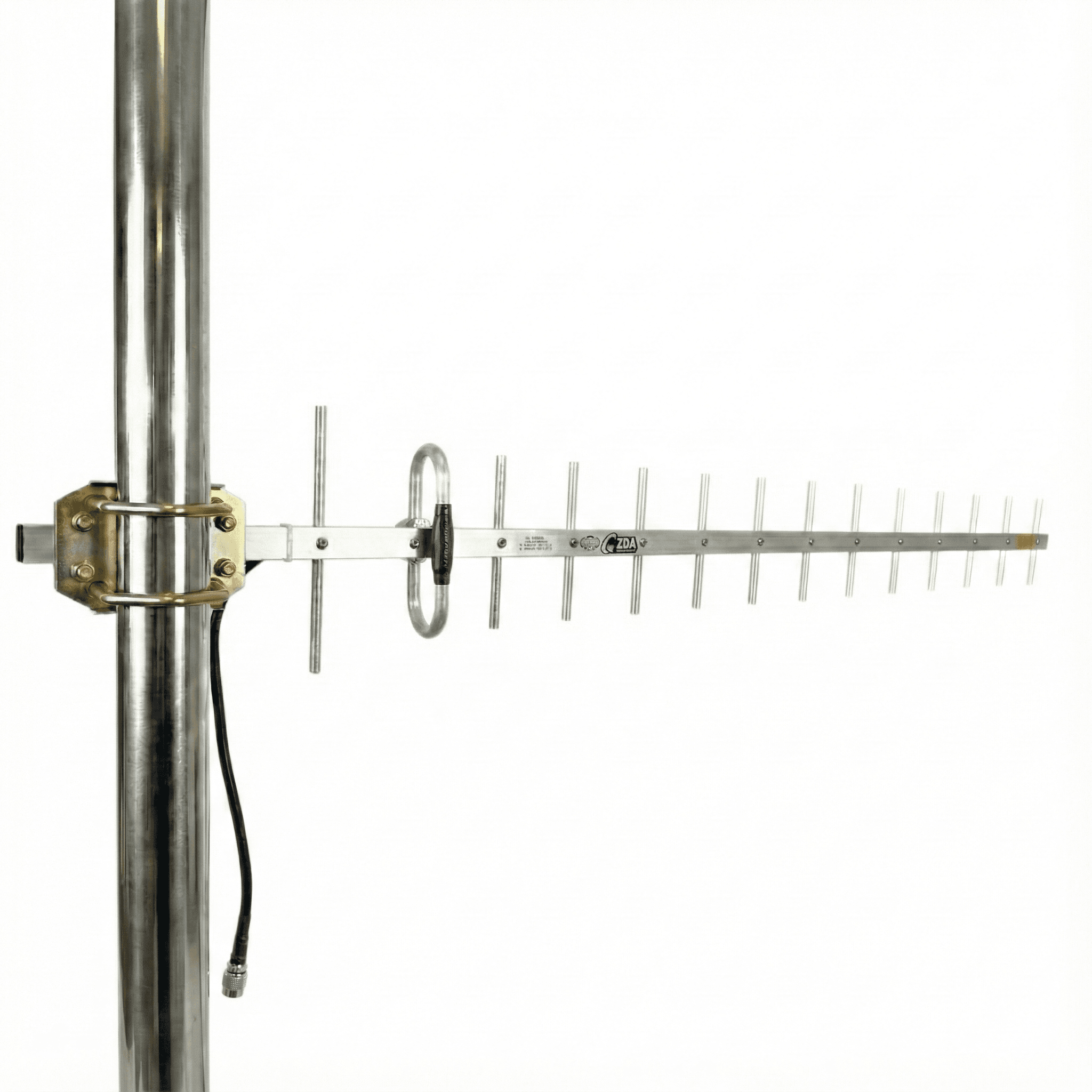

900 MHz UHF Yagi Antenna | 6-14 dBi | 50 Ω
$55.00
50-ohm VHF Yagi for cellular, land-mobile, and industrial wireless.
• Up to +14 dBi directional gain • 824-960 MHz operating frequency range • 6061-T6 aluminum alloy construction • Tested to VSWR ≤ 1.5 for low return loss • Engineered for long-range 824–960 MHz cellular, land-mobile, and industrial wireless networks
Technical Specifications
For full product specifications, download the attached data sheet.
No Datasheet Image Available
The ZDA 900 MHz Directional UHF Yagi Antenna (ZDADJ900-YG) delivers reliable long-range communication across the 824–960 MHz band, specially engineered for cellular, land-mobile, and industrial wireless applications. With 4 different configurations offering up to +14 dBi directional gain, the ZDADJ900-yG enables flexible deployment for site-to-site connections, base stations, or telemetry applications needing tailored coverage and performance. Each variant supports selectable horizontal or vertical polarization, allowing system designers and installers to optimize signal alignment for maximum efficiency and minimal interference.
Constructed from 6061-T6 aluminum alloy, the ZDADJ900-YG is built for consistent, all-weather operation with tested performance to VSWR ≤ 1.5, reducing power loss and boosting signal clarity. Standardized N-Female connectors and robust mounting hardware (Ø35–Ø50 mm mast compatibility) make the antenna easy to integrate and deploy in diverse environments, from utility networks to transportation or campus-wide systems.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +14 dBi directional gain
- •824-960 MHz operating frequency range
- •6061-T6 aluminum alloy construction
- •Tested to VSWR ≤ 1.5 for low return loss
- •Engineered for long-range 824–960 MHz cellular, land-mobile, and industrial wireless networks
Applications
- •Cellular/LTE base station and repeater site deployment
- •Land-mobile radio communications infrastructure
- •Industrial facility wireless telemetry and monitoring
- •Remote data acquisition and utility network communications
