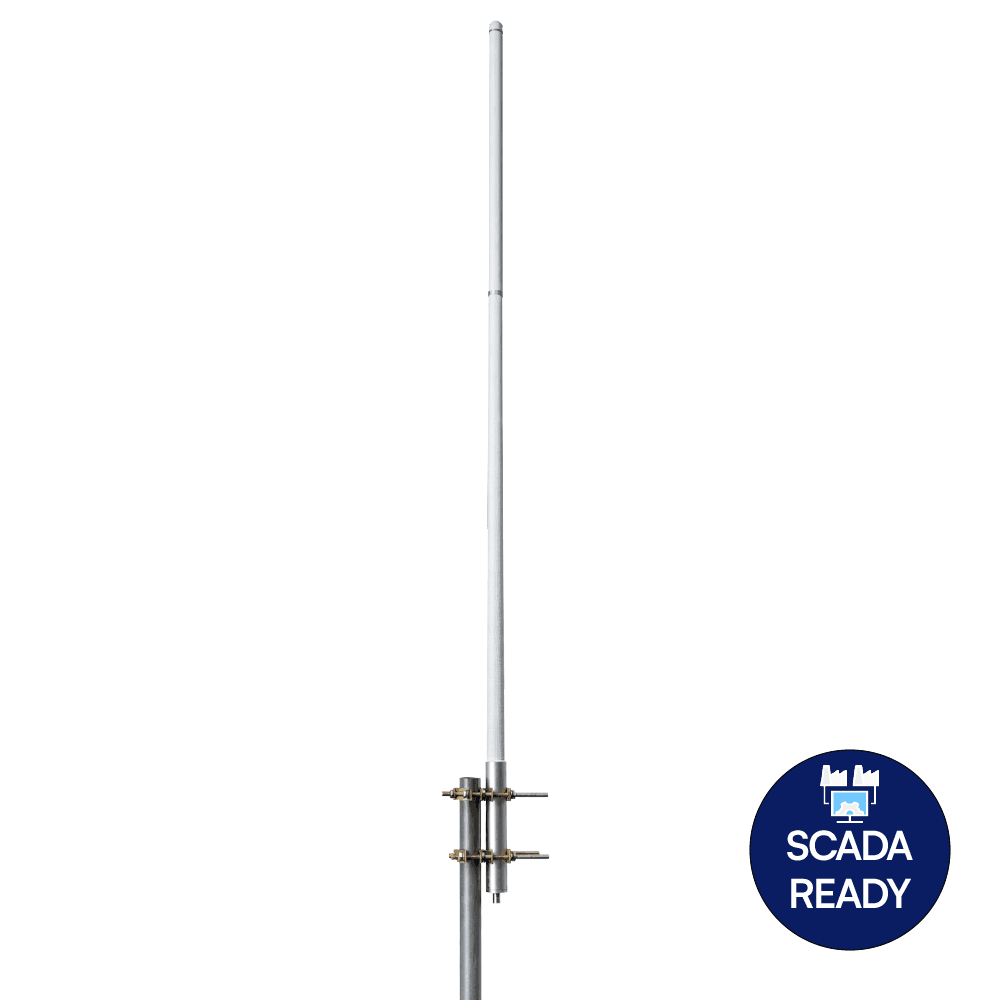

The ZDA 900 MHz ISM Collinear Omnidirectional Antenna (ZDAQJ900-11) is engineered for reliable 360° connectivity across the 902–928 MHz band, supporting industrial SCADA, telemetry, IoT/IIoT, and private wireless networks. Delivering up to +11 dBi of gain, the ZDAQJ900-11 extends range and improves site-wide coverage for gateways, base stations, and remote monitoring locations. At 3010 mm (9' 10.5") tall, it’s our tallest omnidirectional antenna, built to maximize elevation and deliver exceptional reach in demanding outdoor deployments.
ZDAQJ900-11 features a durable fiberglass radome and dual-pole stainless steel mounting hardware for long-term outdoor performance in harsh environments. Each antenna is tested to VSWR ≤ 1.5 to minimize signal reflection and maintain strong link efficiency across the ISM band. With an N-Female connector, and wind survivability up to 135 mph, the ZDAQJ900-11 is built for fast deployment in mission-critical field installations.

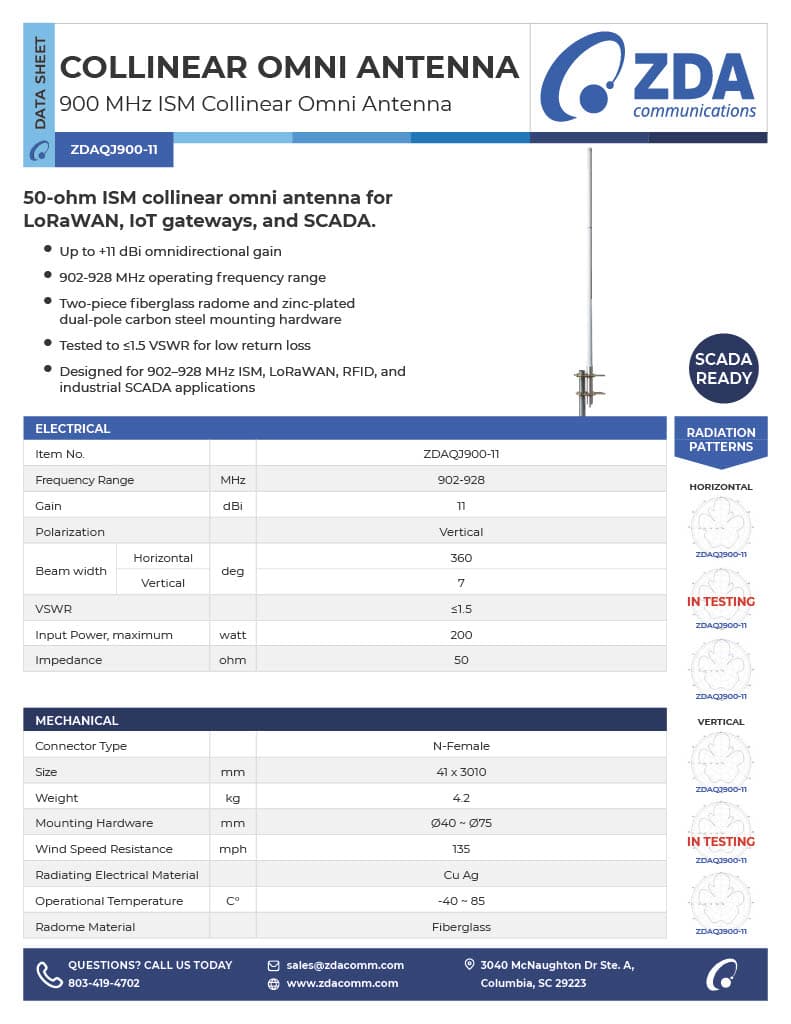

For additional information and complete antenna specifications, download the attached data sheet.
900 MHz ISM Collinear Omni Antenna | 902-928 MHz | 11 dBi | 50 Ω
$385.00
50-ohm ISM omnidirectional antenna for LoRaWAN, IoT gateways, and SCADA.
• Up to +11 dBi omnidirectional gain • 902-928 MHz operating frequency range • Two-piece fiberglass radome and zinc-plated carbon steel hardware • Tested to VSWR ≤ 1.5 for low return loss • Designed for 902–928 MHz ISM, LoRaWAN, RFID, and industrial SCADA applications
Technical Specifications
For full product specifications, download the attached data sheet.
Features
- •Up to +11 dBi omnidirectional gain
- •902-928 MHz operating frequency range
- •Two-piece fiberglass radome and zinc-plated carbon steel hardware
- •Tested to VSWR ≤ 1.5 for low return loss
- •Designed for 902–928 MHz ISM, LoRaWAN, RFID, and industrial SCADA applications
Applications
- •Utility SCADA & telemetry
- •IIoT sensor networks
- •900 MHz private wireless
- •Remote site monitoring
