800 MHz Grid Parabolic Antenna | 806-898 MHz | 10-15 dBi | 50 Ω
$90.00
High-gain precision for extreme range and performance.
• Up to +15 dBi directional gain • 806-896 MHz operating frequency range • Aluminum alloy grid construction • Tested to VSWR ≤ 1.5 for low return loss • Designed to support public safety, LMR, SCADA, telemetry, and licensed 800 MHz network backhaul
Technical Specifications

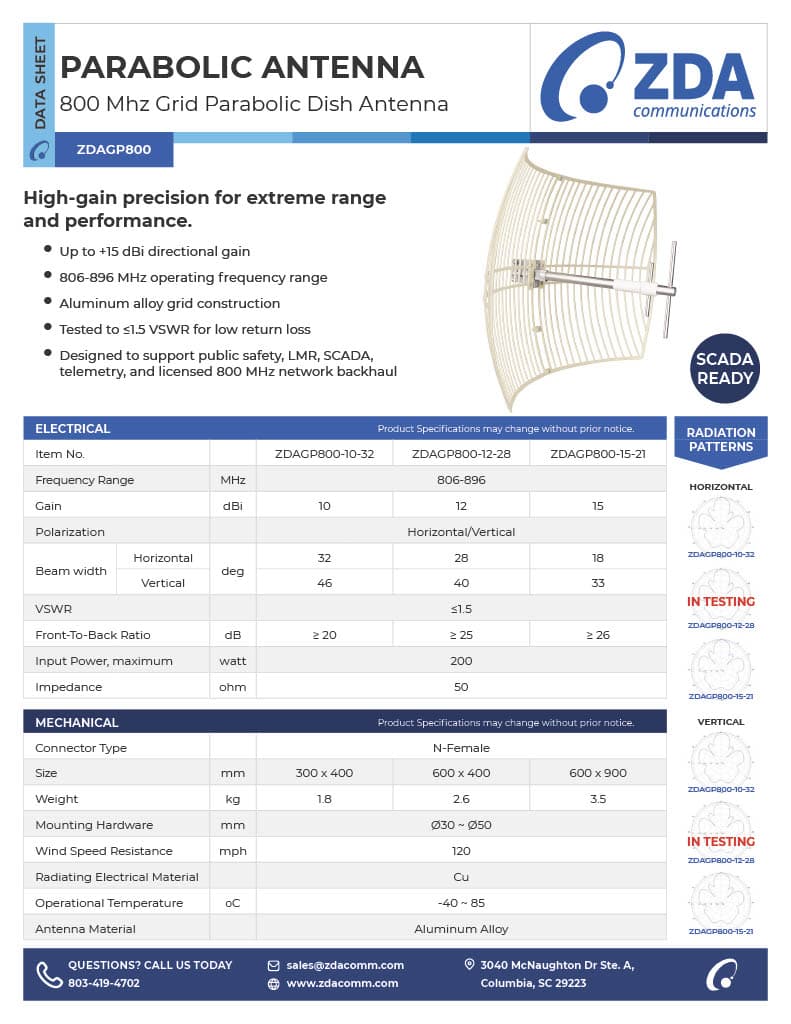

For full product specifications, download the attached data sheet.

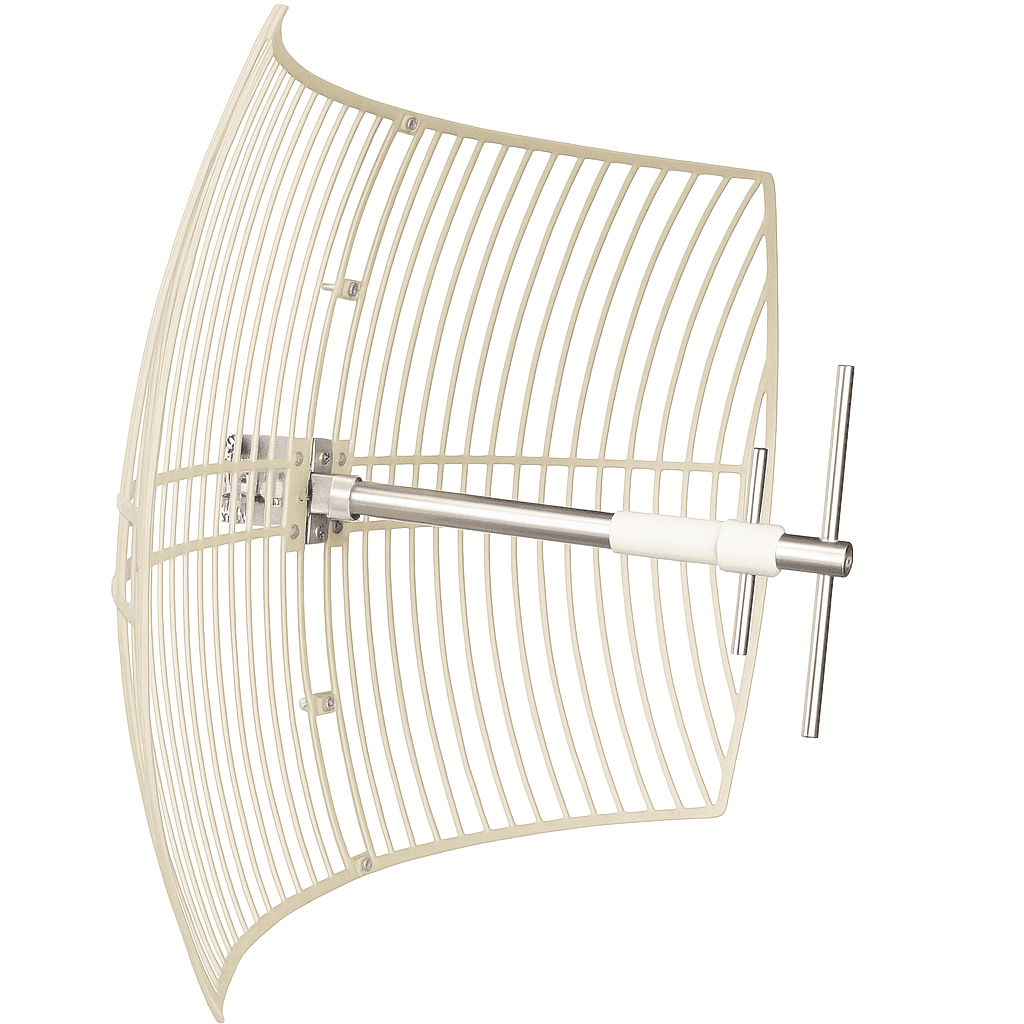

The ZDA 800 MHz Grid Parabolic Dish Antenna (ZDAGP800) offers high-gain, precision directional performance for extreme-range wireless links across the 806–896 MHz spectrum. With 3 configurations offering up to +15 dBi, this parabolic antenna is specifically engineered for public safety, LMR, SCADA, telemetry, and licensed 800 MHz network backhaul applications where maximum reach and interference rejection are required. Both horizontal and vertical polarization options are supported, delivering deployment flexibility for system designers and installers.
ZDAGP800 boasts an aluminum alloy grid construction and is rated for operation in temperatures from –40°C to +85°C, and withstands harsh outdoor conditions while maintaining reliable RF performance. Its ≥26 dB front-to-back ratio ensures exceptional signal focus and minimizes interference, while tested VSWR ≤1.5 guarantees high efficiency and low return loss. The antenna features a standard N-Female connector, accommodates pole mounting (Ø30–Ø50 mm), and is wind resistant up to 120 mph, ensuring secure and consistent performance in critical communication environments.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +15 dBi directional gain
- •806-896 MHz operating frequency range
- •Aluminum alloy grid construction
- •Tested to VSWR ≤ 1.5 for low return loss
- •Designed to support public safety, LMR, SCADA, telemetry, and licensed 800 MHz network backhaul
Applications
- •Public safety and LMR backhaul or relay sites
- •Long-range SCADA and telemetry system deployments
- •Licensed 800 MHz telecommunications and industrial wireless links
- •Remote site communication for infrastructure monitoring
