The ZDA 700 MHz LTE Omnidirectional Antenna (ZDAQJ700) is engineered to provide dependable 360° coverage across the 698–755 MHz spectrum for lower 700 MHz wireless networks. Offering up to +10 dBi gain, this antenna is designed for LTE, Band 12/17, SCADA, and mobile broadband applications where broad-area omnidirectional coverage and consistent signal performance are critical. Its vertical polarization, full 360-degree horizontal pattern, and multiple vertical beamwidth options allow for efficient coverage planning across fixed wireless, industrial, and wide-area network deployments.
Constructed with a durable fiberglass radome and zinc-plated carbon steel mounting hardware, the ZDAQJ700 is built for reliable outdoor use in demanding environments. Tested to VSWR ≤ 1.5, it supports low signal reflection and efficient RF performance, while its 50-ohm impedance, 200 W maximum input power, and N-Female connector allow for straightforward integration into existing network infrastructure. With wind resistance up to 120 mph and operating temperatures from -40 to 85°C, the ZDAQJ700 is well suited for industrial, utility, and broadband deployments requiring long-term field durability.

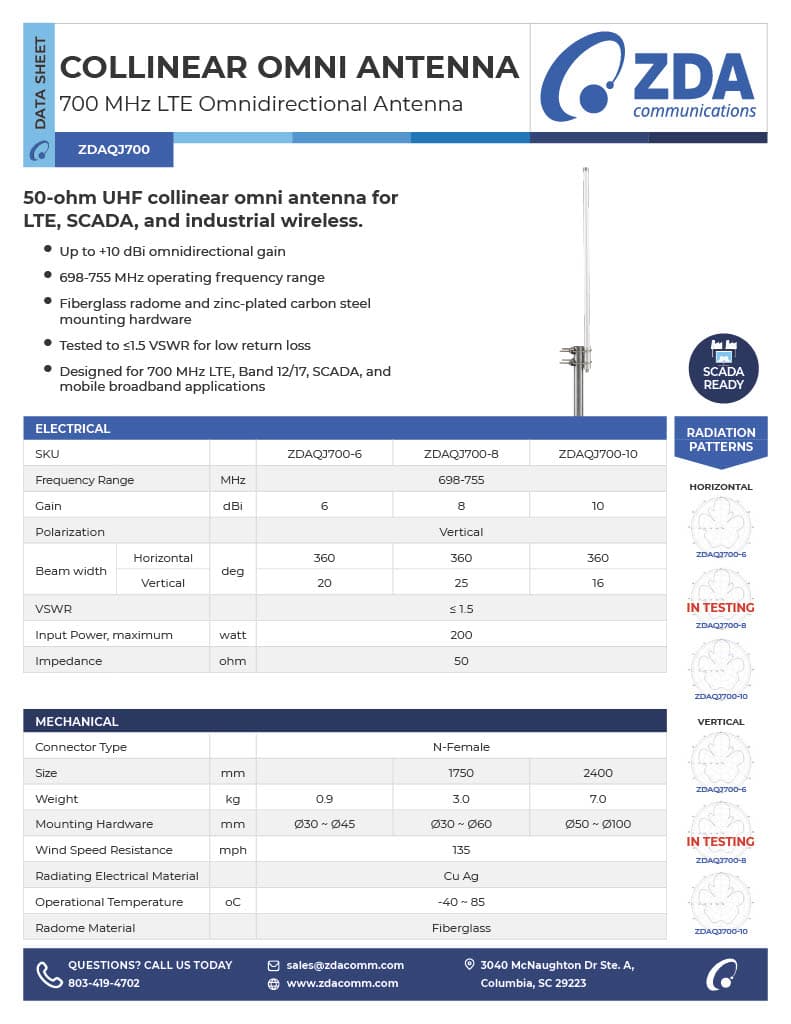

For additional information and complete antenna specifications, download the attached data sheet.

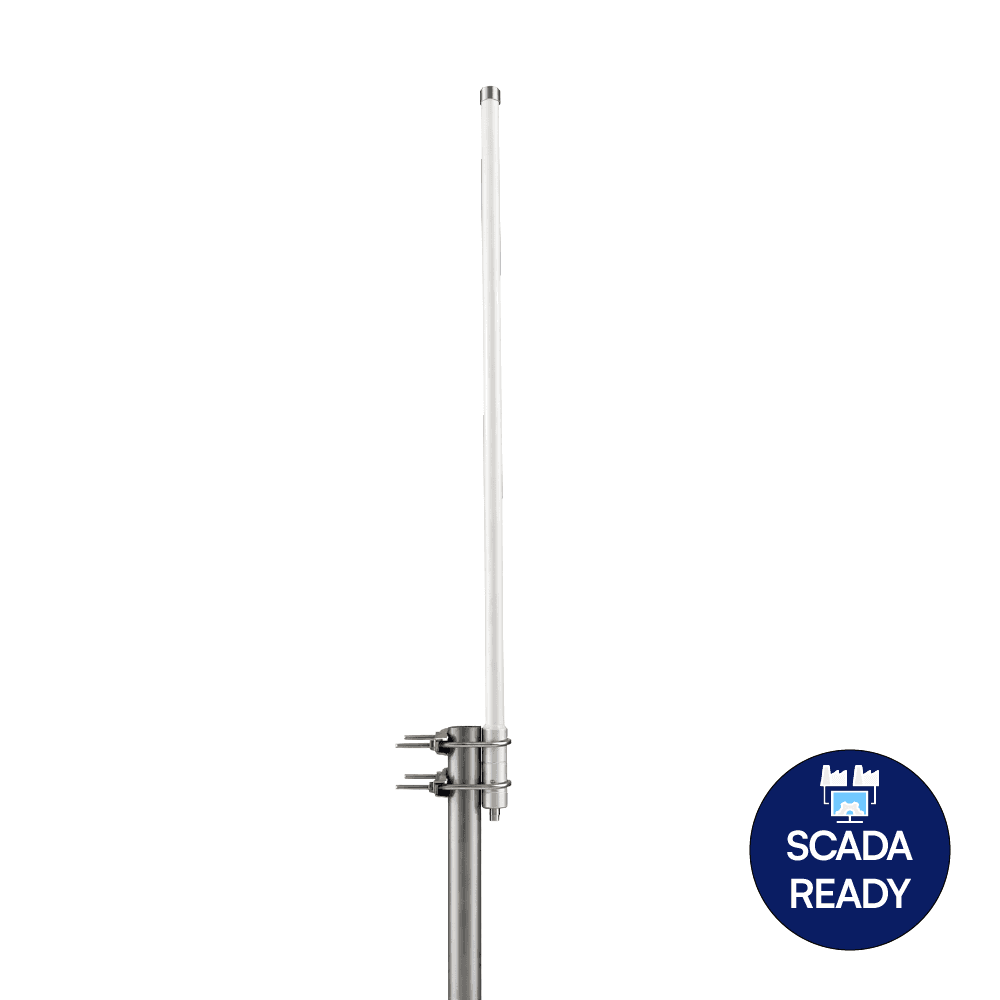

Shown: ZDAQJ700-10
