2.4 GHz ISM / Wi-Fi Yagi Antenna | 12-18 dBi | 50 Ω
$70.00
50-ohm ISM Yagi for SCADA, telemetry, and industrial monitoring links.
• Up to +18 dBi omnidirectional gain • 2400-2500 MHz (2.4-2.5 GHz) operating frequency range • 6061-T6 aluminum alloy construction • Tested to VSWR ≤ 1.5 for low return loss • Engineered for long range 2.4-2.5 GHz ISM / Wi-Fi, wireless data, and IoT networks
Technical Specifications
For full product specifications, download the attached data sheet.
No Datasheet Image Available
The ZDA 2.4 GHz Directional ISM/Wi-Fi Yagi Antenna (ZDADJ2400-YG) is engineered for robust, high-efficiency wireless communication across the 2400–2500 MHz spectrum. Available with up to +18 dBi directional gain, this antenna supports long-range data links, telemetry, Wi-Fi, and industrial IoT applications where reliable point-to-point or point-to-multipoint connectivity is essential. Its selectable horizontal or vertical polarization and narrow beamwidth options enable targeted signal deployment, reduced interference, and optimized network planning for demanding sites.

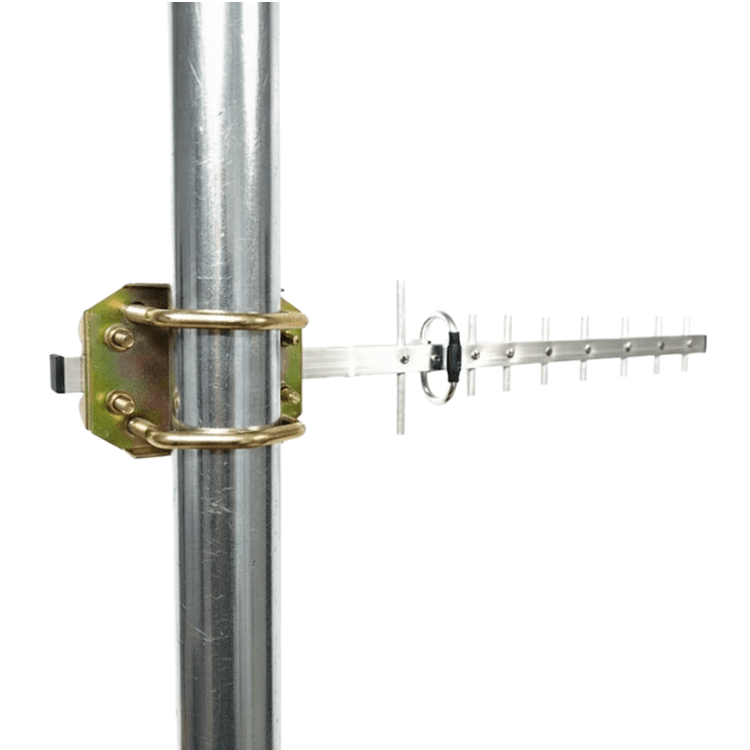

Constructed from rugged 6061-T6 aluminum alloy and tested to VSWR ≤ 1.5, the ZDADJ2400-YG assures high durability, low return loss, and consistent field performance in outdoor and industrial environments. With a 50-ohm impedance, max input power of 100 W, and N-Female connector, integration into existing infrastructure is seamless. The included pole-mount hardware accommodates Ø30–Ø50 mm masts, ensuring fast and secure installation in any climate.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +18 dBi omnidirectional gain
- •2400-2500 MHz (2.4-2.5 GHz) operating frequency range
- •6061-T6 aluminum alloy construction
- •Tested to VSWR ≤ 1.5 for low return loss
- •Engineered for long range 2.4-2.5 GHz ISM / Wi-Fi, wireless data, and IoT networks
Applications
- •Long-range Wi-Fi backbone or bridging links
- •Industrial IoT deployments and data concentration points
- •Wireless telemetry and remote data monitoring
- •Campus-wide wireless distribution or site-to-site infrastructure
