2.4 GHz ISM Omnidirectional Antenna | 2.4-2.5 GHz | 10-12 dBi | 50 Ω
$60.00
50-ohm ISM collinear omni antenna for Wi-Fi, IoT, and industrial wireless links.
• Up to +12 dBi omnidirectional gain • 2400-2500 MHz (2.4-2.5 GHz) operating frequency range • Fiberglass radome and zinc-plated carbon steel mounting hardware • Tested to VSWR ≤ 1.5 for low return loss • Engineered for long range 2.4-2.5 GHz ISM / Wi-Fi, wireless data, and IoT networks
Technical Specifications
For full product specifications, download the attached data sheet.
The ZDA 2.4 GHz Omnidirectional ISM/Wi-Fi Yagi Antenna (ZDAQJ2400) is engineered for robust, high-efficiency wireless communication across the 2400–2500 MHz spectrum. Available with up to +18 dBi directional gain, this antenna supports long-range data links, telemetry, Wi-Fi, and industrial IoT applications where reliable point-to-point or point-to-multipoint connectivity is essential. Its selectable horizontal or vertical polarization and narrow beamwidth options enable targeted signal deployment, reduced interference, and optimized network planning for demanding sites.
Constructed from 6061-T6 aluminum alloy and tested to VSWR ≤ 1.5, ZDADJ2400-YG assures high durability, low return loss, and consistent field performance in outdoor and industrial environments. With a 50-ohm impedance, max input power of 100 W, and N-Female connector, integration into existing infrastructure is seamless. The included pole-mount hardware accommodates Ø30–Ø50 mm masts, ensuring fast and secure installation in any climate.
For additional information and complete antenna specifications, download the attached data sheet.

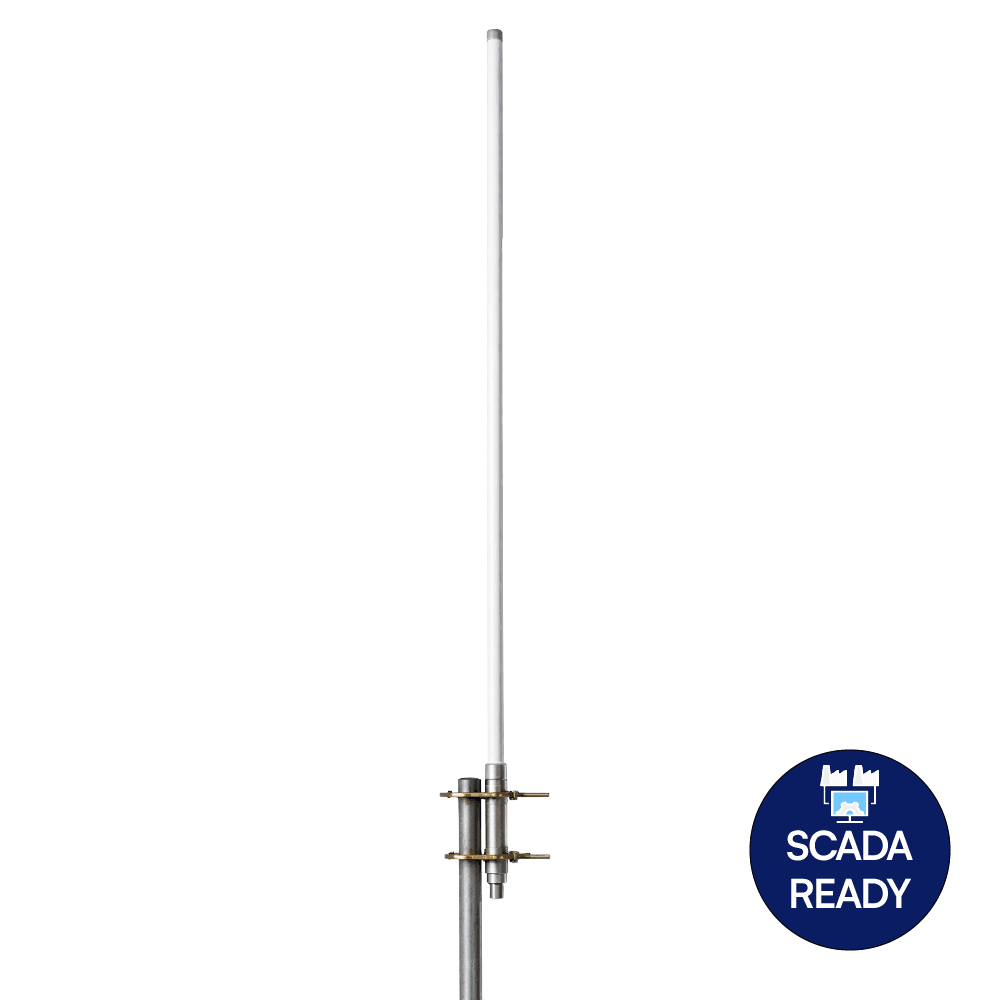

Shown: ZDAQJ2400-10
Features
- •Up to +12 dBi omnidirectional gain
- •2400-2500 MHz (2.4-2.5 GHz) operating frequency range
- •Fiberglass radome and zinc-plated carbon steel mounting hardware
- •Tested to VSWR ≤ 1.5 for low return loss
- •Engineered for long range 2.4-2.5 GHz ISM / Wi-Fi, wireless data, and IoT networks
Applications
- •Long-range Wi-Fi backbone or bridging links
- •Industrial IoT deployments and data concentration points
- •Wireless telemetry and remote data monitoring
- •Campus-wide wireless distribution or site-to-site infrastructure
