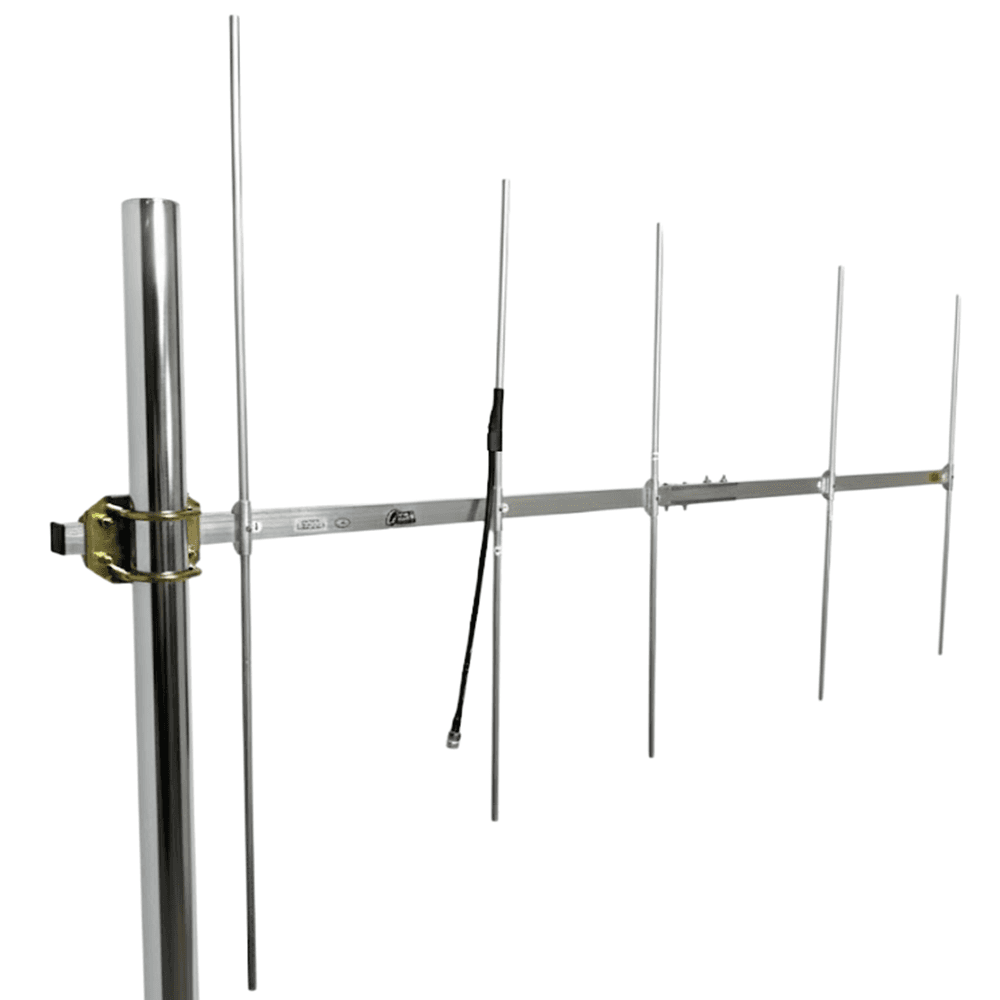

166 MHz VHF Yagi Antenna | 6-12 dBi | 50 Ω
$125.00
50-ohm VHF Yagi for LMR/SCADA links and MOTUS tracking receiver sites.
• Up to +12.5 dBi directional gain • 164-170 MHz operating frequency range • Two-piece 6061-T6 aluminum alloy construction • Tested to VSWR ≤ 1.5 for low return loss • Built for land mobile radio (LMR), utility telemetry, and SCADA deployments
Technical Specifications

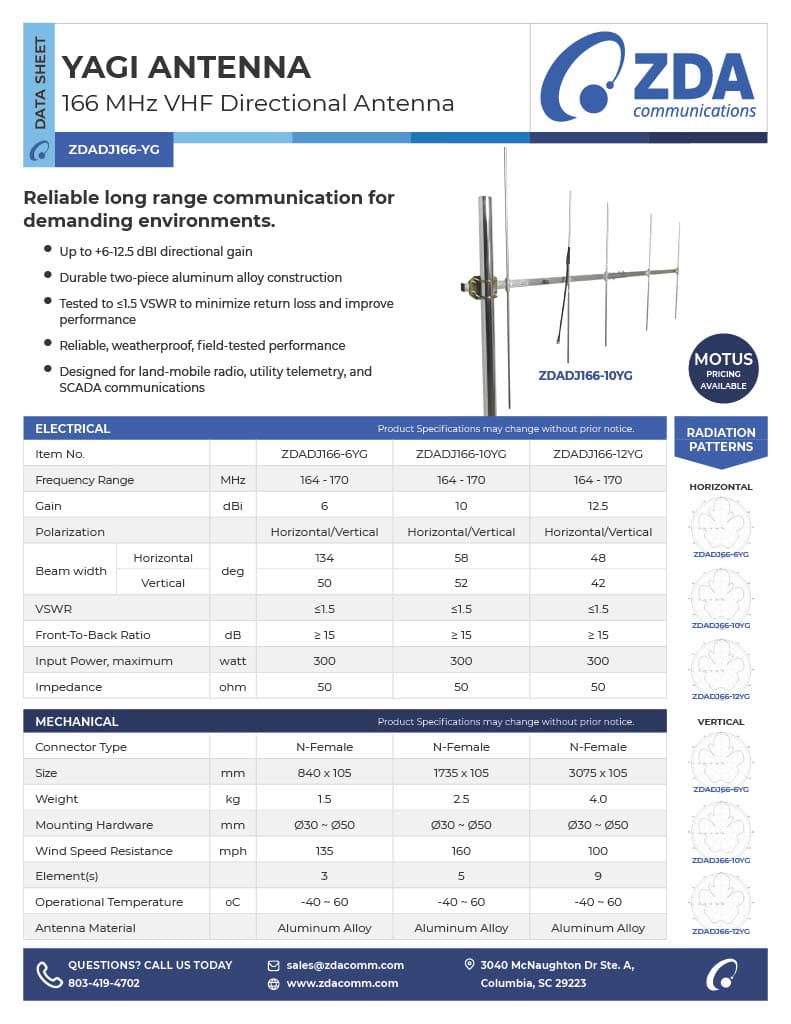

For full product specifications, download the attached data sheet.
The ZDA 166 MHz Directional VHF Yagi Antenna (ZDADJ166-YG) is engineered for reliable, high-performance communication in land mobile radio (LMR), utility telemetry, SCADA systems, and MOTUS wildlife tracking receiver deployments. Available in configurations delivering up to +12.5 dBi directional gain, this antenna offers focused long-range coverage and strong signal clarity, well-suited for challenging VHF environments and remote receiver sites. Selectable horizontal or vertical polarization supports flexible installation across a variety of system requirements.
Constructed with 6061-T6 aluminum alloy and verified to VSWR ≤ 1.5, the ZDADJ166-YG ensures minimized return loss, outstanding durability, and dependable performance even in harsh conditions. It features a 50-ohm impedance, N-Female connector, and robust mounting hardware compatible with Ø30–Ø50 mm masts. Designed for straightforward assembly and proven field reliability, this antenna is ideal for professional engineers and installers seeking efficient, consistent VHF directional communications.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +12.5 dBi directional gain
- •164-170 MHz operating frequency range
- •Two-piece 6061-T6 aluminum alloy construction
- •Tested to VSWR ≤ 1.5 for low return loss
- •Built for land mobile radio (LMR), utility telemetry, and SCADA deployments
Applications
- •Land mobile radio (LMR) base stations and repeaters
- •Utility telemetry and SCADA network deployments
- •MOTUS wildlife tracking receiver sites
- •Remote environmental and data monitoring links
