166 MHz Collinear Omni Antenna | 164-168 MHz | 3 dBi | 50 Ω
$160.00
50-ohm VHF omnidirectional antenna for 164–168 MHz telemetry, wildlife tracking, and industrial monitoring applications.
• Up to +3 dBi omnidirectional gain • 164-168 MHz operating frequency range • Fiberglass radome and stainless steel mounting hardware • Tested to VSWR ≤ 1.5 for low return loss • Optimized for VHF LMR, MOTUS wildlife tracking, telemetry, and industrial SCADA applications
Technical Specifications
For full product specifications, download the attached data sheet.
No Datasheet Image Available

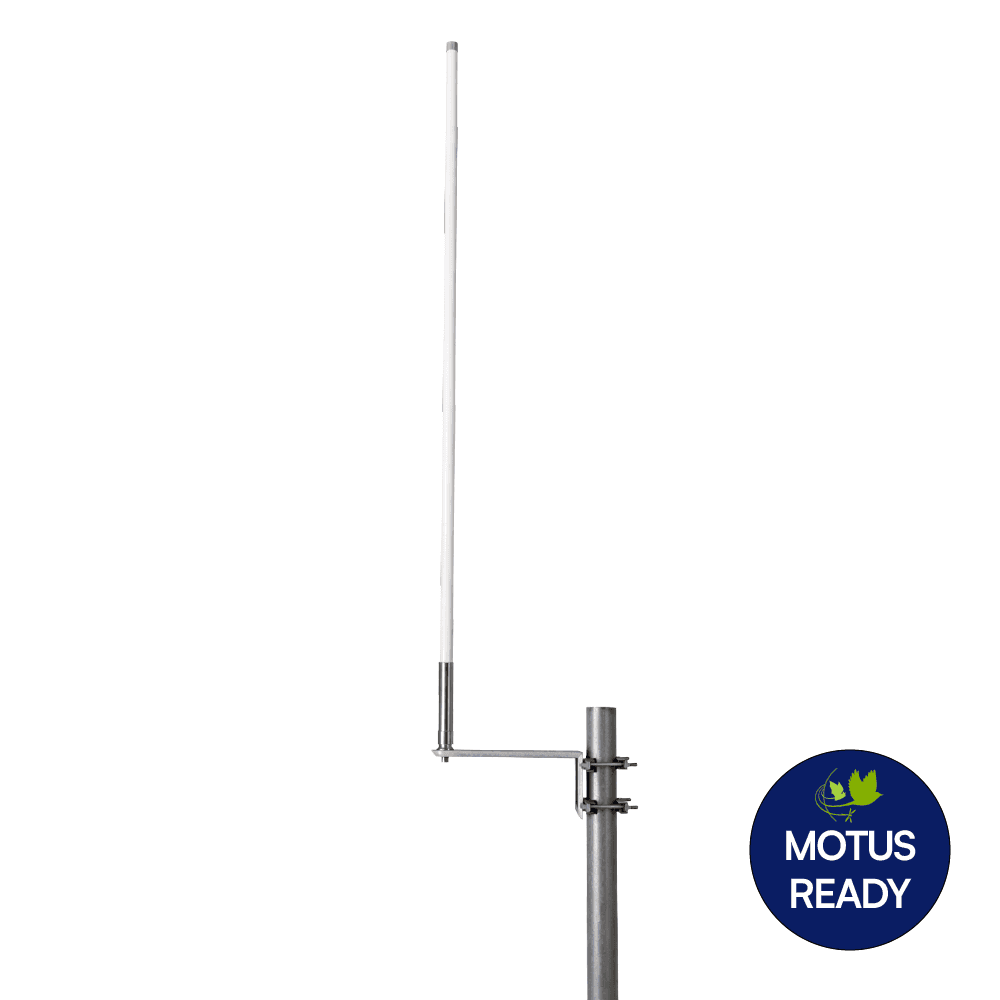

The ZDA 166 MHz VHF Collinear Omnidirectional Antenna (ZDAQJ166) is an industrial-grade 50-ohm solution engineered for dependable site coverage across the 164–168 MHz band. Delivering up to+3 dBi omnidirectional gain with 360° horizontal pattern control and vertical polarization, it is designed to support consistent VHF link performance in telemetry and MOTUS monitoring networks where uniform, all-around coverage is required.
Built for outdoor deployments on buildings, towers, and masts, the antenna features a fiberglass radome with stainless steel mounting hardware, an N-Female connector, and mast compatibility for Ø25–Ø50 mm poles. Each unit is tested to VSWR ≤ 1.5 for low return loss and supports up to 200 W input power, built for VHF LMR, MOTUS wildlife tracking, telemetry, and industrial SCADA applications.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +3 dBi omnidirectional gain
- •164-168 MHz operating frequency range
- •Fiberglass radome and stainless steel mounting hardware
- •Tested to VSWR ≤ 1.5 for low return loss
- •Optimized for VHF LMR, MOTUS wildlife tracking, telemetry, and industrial SCADA applications
Applications
- •VHF LMR site coverage for utilities, public works, and industrial operations
- •MOTUS wildlife tracking receiver sites and telemetry networks
- •Industrial SCADA communications for remote monitoring and control systems
- •Fixed-site VHF telemetry links for sensors, infrastructure monitoring, and distributed nodes
