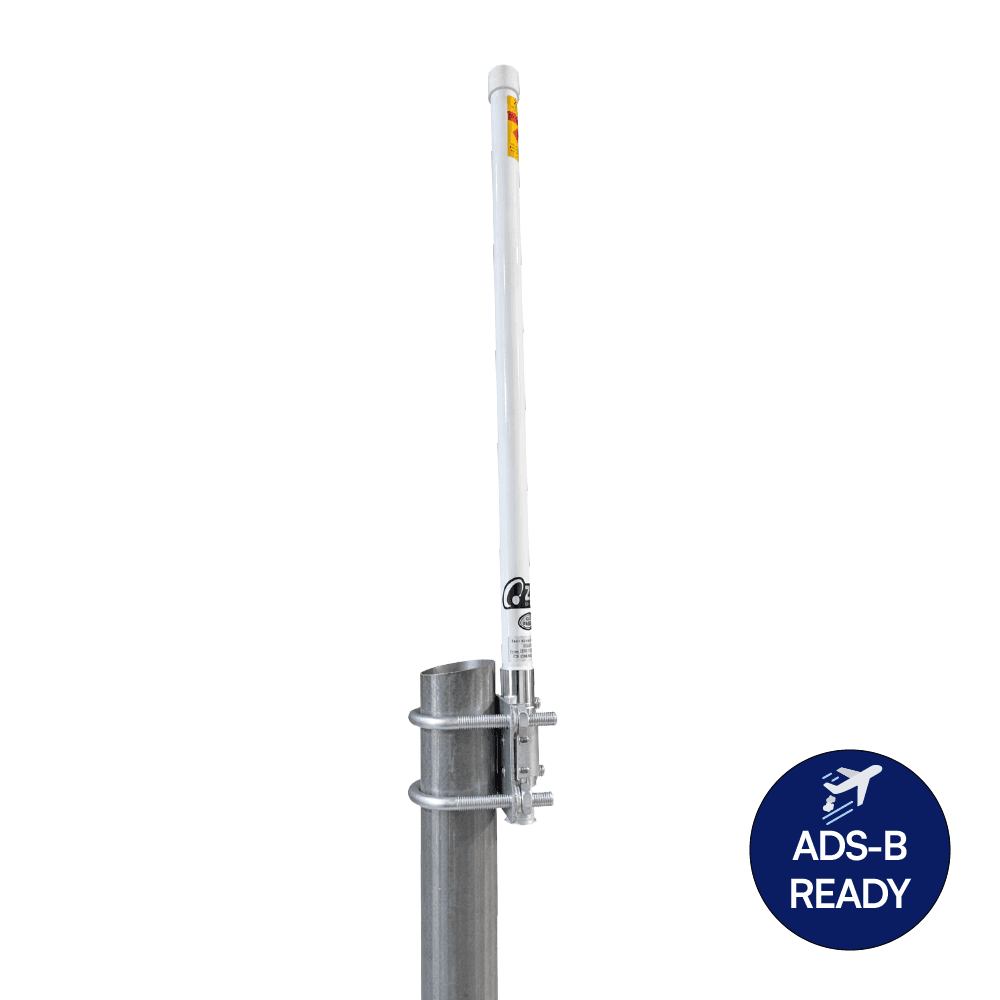

1090 MHz ADS-B Omnidirectional Antenna | 1070-1110 MHz | 5-9 dBi | 50 Ω
$60.00
50-ohm L-band collinear omni antenna for ADS-B and aviation monitoring.
• Up to +9 dBi omnidirectional gain • 1070-1110 MHz operating frequency range • Fiberglass radome and stainless steel mounting hardware • Tested to ≤1.5 VSWR for low return loss • Designed for 1090 MHz ADS-B, Mode S, and aviation surveillance applications
Technical Specifications

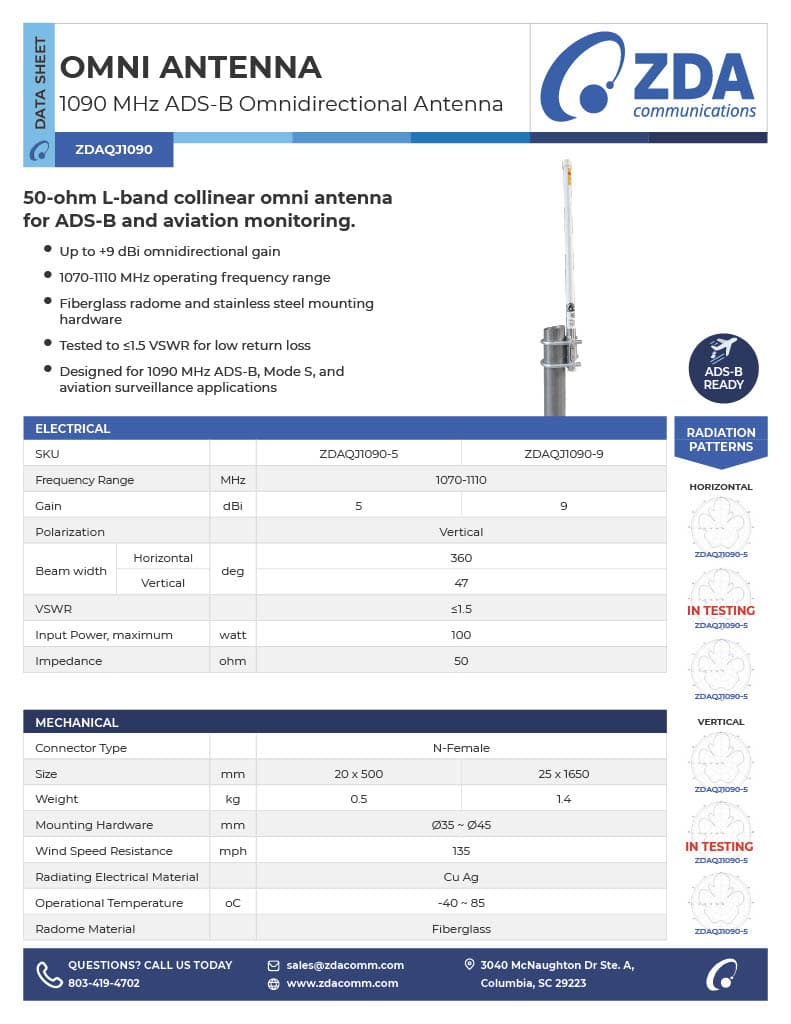

For full product specifications, download the attached data sheet.
The ZDA 1090 MHz Collinear Omnidirectional Antenna is a high-performance ADS-B solution engineered to deliver reliable 360° coverage for aviation surveillance and air traffic monitoring systems. Designed to operate across the 1070–1110 MHz band, it supports ADS-B, Mode S, and related aviation surveillance applications where continuous, uniform reception is critical. Available in 5 dBi and 9 dBi gain configurations, the antenna allows system designers to optimize coverage radius and vertical beam shaping for ground stations, rooftops, and remote monitoring sites.
Built for long-term outdoor deployment, the ZDAQJ1090 features a durable fiberglass radome with stainless-steel mounting hardware to withstand harsh environmental conditions and high winds. Each unit is verified to a VSWR of ≤ 1.5, minimizing signal reflection and ensuring maximum efficiency and receiver protection. All models are vertically polarized, maintain a 50 Ω impedance, use a N-Female connector, and support up to 100 W input power, making them well suited for fixed ADS-B ground stations, airport infrastructure, and aviation monitoring networks requiring dependable, low-loss performance.
For additional information and complete antenna specifications, download the attached data sheet.
Features
- •Up to +9 dBi omnidirectional gain
- •1070-1110 MHz operating frequency range
- •Fiberglass radome and stainless steel mounting hardware
- •Tested to ≤1.5 VSWR for low return loss
- •Designed for 1090 MHz ADS-B, Mode S, and aviation surveillance applications
Applications
- •ADS-B ground reception
- •1090 MHz Mode S monitoring
- •Airport surface surveillance support
- •Aviation transponder test networks
